Rosettes

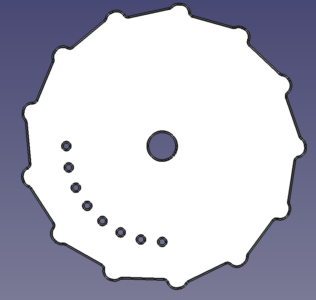

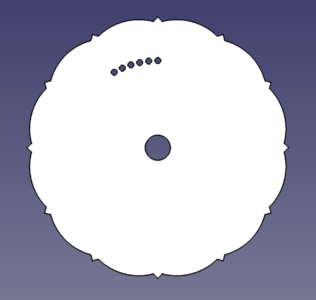

The rosettes below are designed by me from images of rosettes that I have found. The STL files are free to download by clicking on the appropriate image. Each of the rosettes is 150mm in diameter with a 14mm central hole and the phasing holes are 50mm from the centre and 3mm in diameter. These can be printed in PLA on a 3D printer.
Should the size of these rosettes be unsuitable for your Rose Engine lathe please contact me and I may be able to modify them to suit your lathe. I have already done this for some other users.
I can also 3D print these rosettes for you please contact me for price and availability.
The three gear rosettes are for ‘Spirograph’ type of patterns and are 100 tooth for the rosette and then 35 and 30 tooth for the rubber. The number of teeth and location of the holes can be varied (ask me for details).
These last 3 rosettes (8W, 10W and 12W) have a very high amplitude and may not be suitable for some lathes.
Click on any of the images to download the STL file for that particular rosette.
I will add more to this page in due course.
